USB Duplicator - Setup Menu - Auto Start

Auto Start allows you to define the amount of time the duplicator will wait for additional USB devices to be connected to the device after a duplicator function such as Copy, Compare, Erase, or Format is selected.  The auto start timer will only start after the first Target USB device is connected to the duplicator and will reset every time a new USB device is connected.  If all of your target ports have a USB connected to them, no auto start timer will appear for you. If you want to skip the auto start timer during one of these processes you can always press the ENT button to skip.

The auto start setting can be changed to one of four options:

5 - Seconds	There is a 5 - second auto start timer for duplicator functions.
10 - Seconds	There is a 10 - second auto start timer for duplicator functions.
20 - Seconds	There is a 20 - second auto start timer for duplicator functions.
30 - Seconds	There is a 30 - second auto start timer for duplicator functions. Note: This is the default setting.

To change the auto start setting:

1. Power on the duplicator.

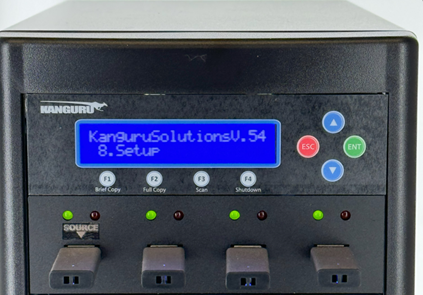

2. From the Main Menu press the Up or Down buttons until you see Setup.

3. When Setup is displaying for you, press the ENT button to enter this menu.

4. You will be able to access the Setup menu and from here you can use the Up or Down buttons to switch menu options.

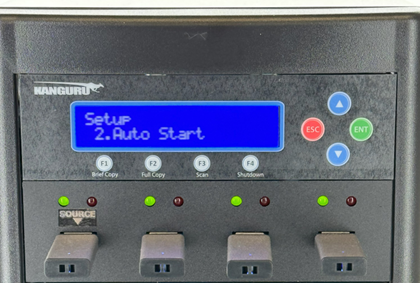

5. After locating Auto Start, press the ENT button to enter this option.

6. You can use the Up or Down buttons to switch auto start options.

7. After locating the auto start option you would like to use, press the ENT button and you will be brought back to the Setup menu.

8. To proceed back to the Main Menu, press the ESC button. This will prompt you with a message informing you that settings are being saved. Once this process is completed, you will be back to the Main Menu.
