USB Duplicator - Utilities Menu - Measure Speed

The option Measure Speed scans any USB devices connected to the duplicator and then displays the reported capacity and Read/Write speeds. You can use the Up and Down buttons to navigate through the USB ports.

To utilize Measure Speed:

1. Power on the duplicator.

2. After the duplicator has fully booted, insert the USB drives that you are looking to measure the speed of.  Note: These drives can be connected to any ports on the duplicator.

3. From the Main Menu press the Up or Down buttons until you see Utilities.

4. When Utilities is displaying for you, press the ENT button to enter this menu.

5. You will be able to access the Utilities menu and from here you can use the Up or Down buttons to switch menu options.

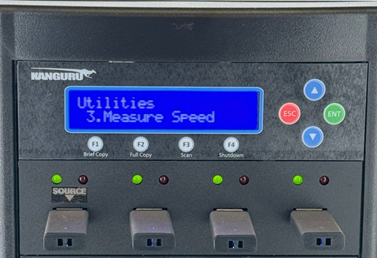

6. After locating Measure Speed, press the ENT button to enter this option.

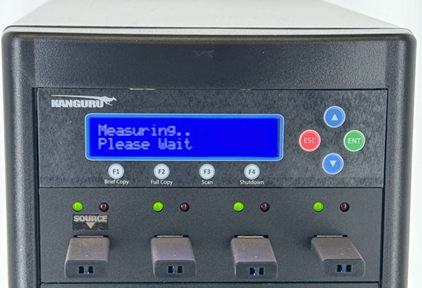

7. You will be prompted with a message “Measuring…Please Wait”.  Note: If you have not inserted a USB drive in every port on the duplicator you will be asked to press ENT to continue with the measuring process.

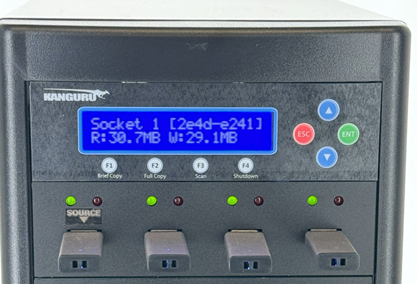

8. After the measuring is completed, you will be provided with a printout on the screen providing the details of the USB drives connected. You can use the Up and Down buttons to switch which drive details you are viewing.

The following breakdown explanation is based on the image above.

Socket 1	In the image the Socket number is 1.  This represents the port on the duplicator which the information is for.
[2e4d-e241]	The information in the brackets represents the Vendor ID (VID) and Product ID (PID) of the particular drive that is being read from.  In this example, the VID is 2e4d and the PID is e241.
R: 30.7MB	This is read speed of the drive connected.  In this example it is measured at 30.7MB.
W: 29.1MB	This is write speed of the drive connected.  In this example it is measured at 29.1MB.

9. After you reviewing the drives information you can press the ESC button which will bring you back to the Utilities menu.

10. To exit back to the Main Menu, process the ESC button once again.
