USB Duplicator - Setup Menu - Port Detection Warning

This will allow the system to show a warning message if the total # of ports available are less than the preset. By default, the preset is auto-detect. However, you can preset it to a specific # of targets if you want.  Note: It is not recommended to alter this setting.

To change the Port Detection Warning setting:

1. Power on the duplicator.

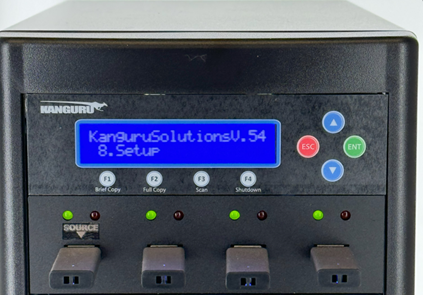

2. From the Main Menu press the Up or Down buttons until you see Setup.

3. When Setup is displaying for you, press the ENT button to enter this menu.

4. You will be able to access the Setup menu and from here you can use the Up or Down buttons to switch menu options.

5. After locating Size Tolerance, press the ENT button to enter this option.

6. You can use the Up or Down buttons to switch Port Detection Warning options.

7. After locating the option, you would like to use, press the ENT button and you will be brought back to the Setup menu.

8.To proceed back to the Main Menu, press the ESC button. This will prompt you with a message informing you that settings are being saved. Once this process is completed, you will be back to the Main Menu.
