USB Duplicator - Setup Menu - Min. Copy Speed

Min. Copy Speed is designed to verify the blank target USB drives are able to reach a minimum write speed.  If the media is unable to meet the minimum write speed requirements set,  the operation being performed will fail for the specific drive(s) connected to the duplicator.  Note: This setting is primarily meant to be used for quality control of the target media.

This setting can be altered in factors of 0.1 MB/s.  The default setting is 0.0 MB/s (equivalent to disabled) and has a max setting of 25.0 MB/s.

To change the Min. Copy Speed setting:

1. Power on the duplicator.

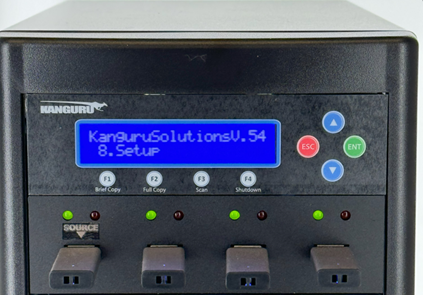

2. From the Main Menu press the Up or Down buttons until you see Setup.

3. When Setup is displaying for you, press the ENT button to enter this menu.

4. You will be able to access the Setup menu and from here you can use the Up or Down buttons to switch menu options.

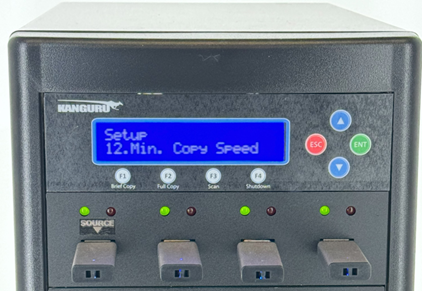

5. After locating Min. Copy Speed, press the ENT button to enter this option.

6. You can use the Up or Down buttons to switch the Min. Copy Speed options.

7. After locating the option, you would like to use, press the ENT button and you will be brought back to the Setup menu.

8. To proceed back to the Main Menu, press the ESC button. This will prompt you with a message informing you that settings are being saved. Once this process is completed, you will be back to the Main Menu.
