Optical Duplicator CopyConnect

Like the Kanguru Media Manager, the CopyConnect software needs to be installed on your Mac in order for it to recognize the Kanguru Duplicator’s hard drive through the USB connection.

The Kanguru Duplicator’s internal hard drive is formatted using a proprietary file system that is not recognized by your Apple computer. Once you have installed the CopyConnect software on your Mac, your Mac will be able to recognize the file system and you will be able to access the Duplicator’s internal hard drive, allowing you to copy or save files directly from your computer to your Duplicator through the USB connection.

The latest version of CopyConnect can be found by clicking here.

Copy Connect v2.1 Minimum Hardware Requirements:

√  Mac Computer (Mac OS X 10.8 and later supported)

√ Intel i386 or x86_64 processor √ USB2.0 port

√ 10MB of free disc space on your hard drive

Software Installation

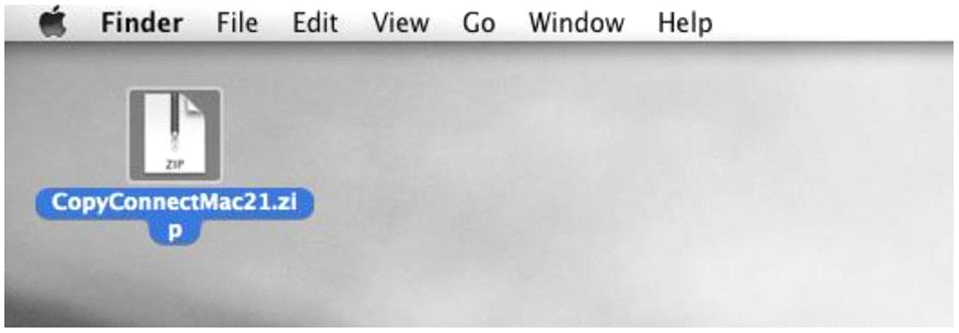

1. Download the Mac CopyConnect software from the Kanguru Support site.

2. The CopyConnectMac21.zip file is password protected and cannot be extracted by the Mac Archive Utility. You will need to use the Mac Terminal:

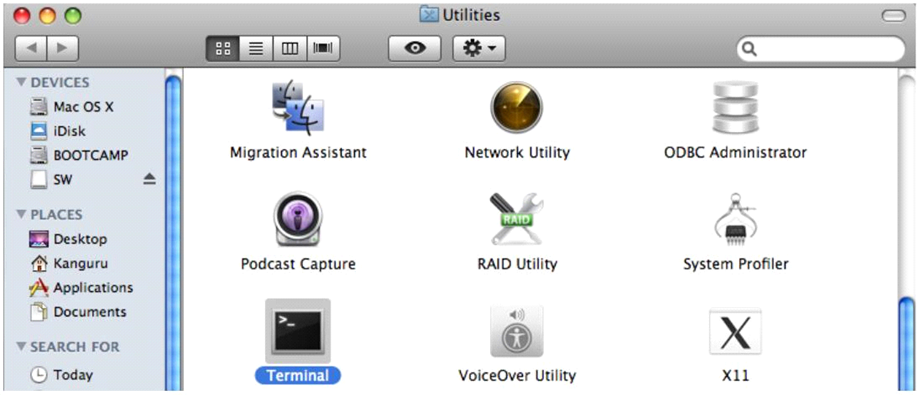

a) Open the Utilities window and select Terminal.

b) The Terminal window appears. Type “cd desktop” and then press the Enter key.

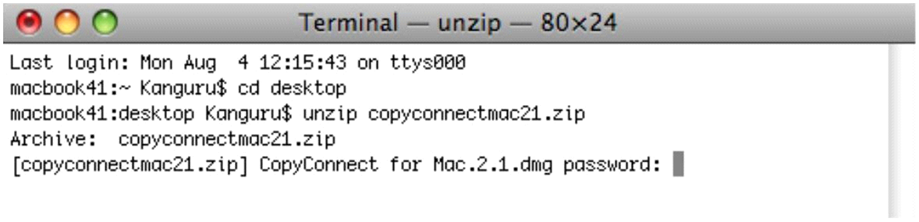

c) Type “unzip copyconnectmac21.zip” and then press the Enter key. The terminal will ask you to provide a password:

d) The Copy Connect password can be found on the Product Key label affixed to the back of the duplicator. The password must be entered exactly as it appears on the label with hyphens included.

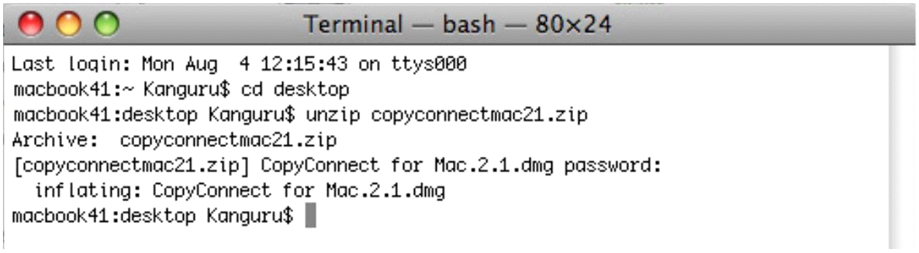

e) If you entered the password correctly then the installer files will be extracted.

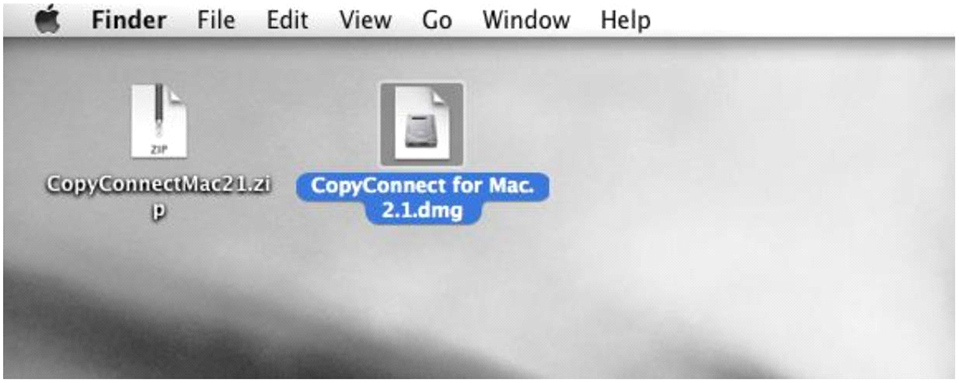

3. The file CopyConnect for Mac.2.1.dmg appears on the desktop. Double click it to mount and open the .dmg file.

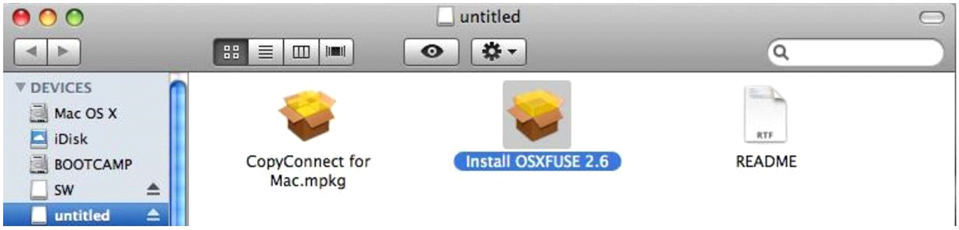

4. Double click the Install OSXFUSE 2.6 file to install OSXFUSE. OSXFUSE allows Mac OSX to recognize the file system used by the duplicator’s internal hard drive.

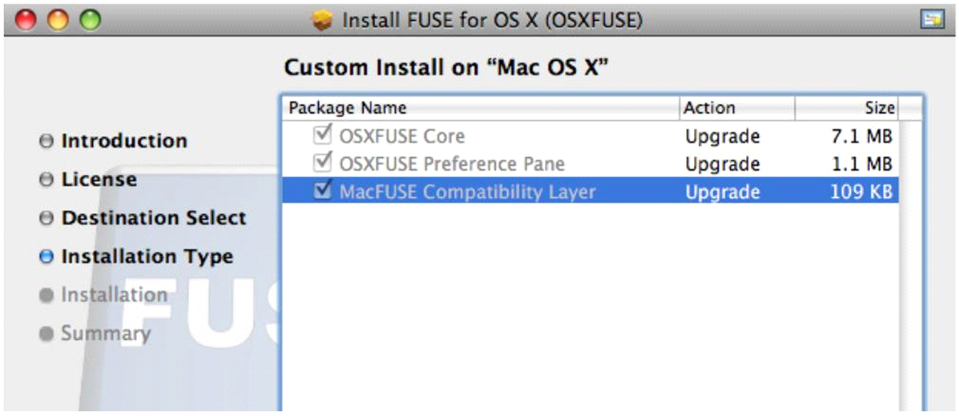

5. When you reach the “Installation Type” screen during the installation, Mac FUSE Compatibility Layer MUST be selected.

Note: If the installer asks you for a password, the password is the admin password you use to login to Mac OSX.

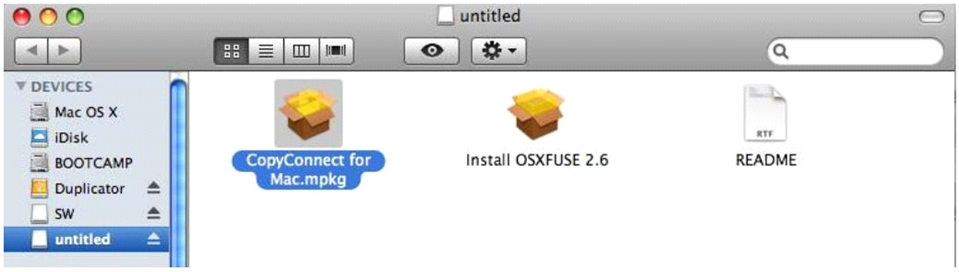

6. After OSXFUSE is successfully installed, double click on the CopyConnect for Mac.mpkg file to install the Copy Connect software.

Note: If the installer asks you for a password, the password is the admin password you use to login to Mac OSX.

7. Follow the instructions on screen to complete the installation of the Copy Connect software.

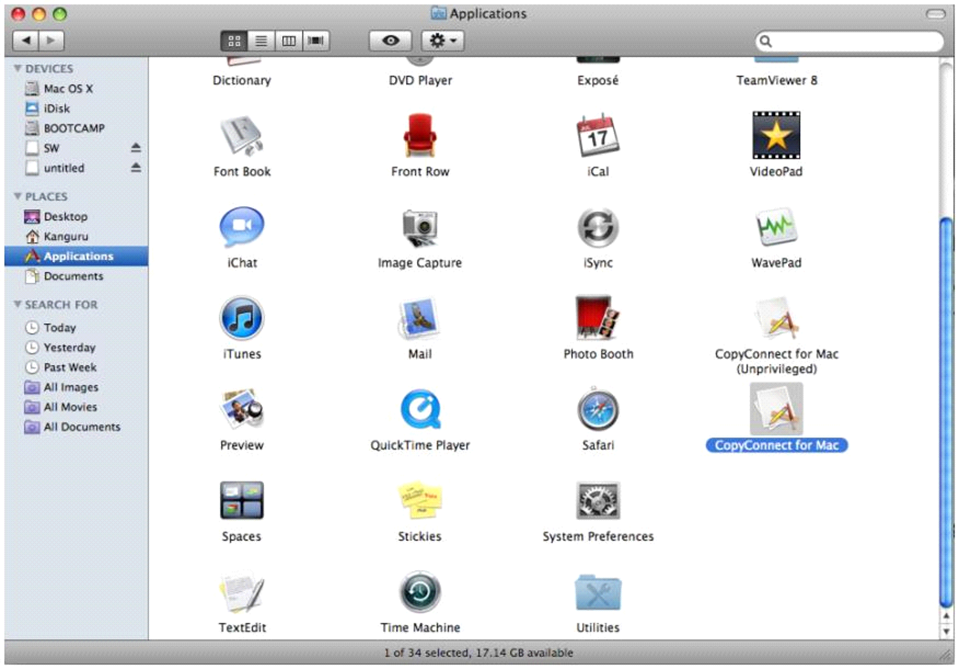

8. When Copy Connect is installed, it will appear in the Applications window.

Note: You can also type “CopyConnect for Mac” from your Spotlight search as well.

How to Use CopyConnect

After you have successfully installed Copy Connect onto your computer, you can now copy or save DVD image files to the Kanguru Duplicator’s hard drive through your computer.

Warning! Do not try to access the Duplicator’s hard drive through your computer before you have installed Copy Connect. If you try to access the Duplicator’s hard drive through your computer before installing Copy Connect, your computer will not be able to recognize the file format and you will be prompted to format the hard drive. Do not format the hard drive; doing so will erase any data stored on the hard drive.

1. Open the Applications window and double click CopyConnect for Mac to launch the Copy Connect software. Only run the CopyConnect for Mac (unprivileged) when you do not admin rights on the computer.

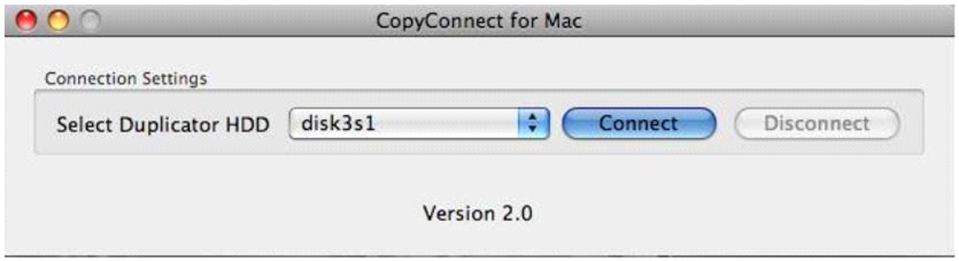

The Copy Connect menu appears.

2. Click on and note the drives that are listed.

3. Connect your Duplicator to your Mac computer using the supplied USB cable.

4. Enable the External Connection option on the DVD Duplicator.

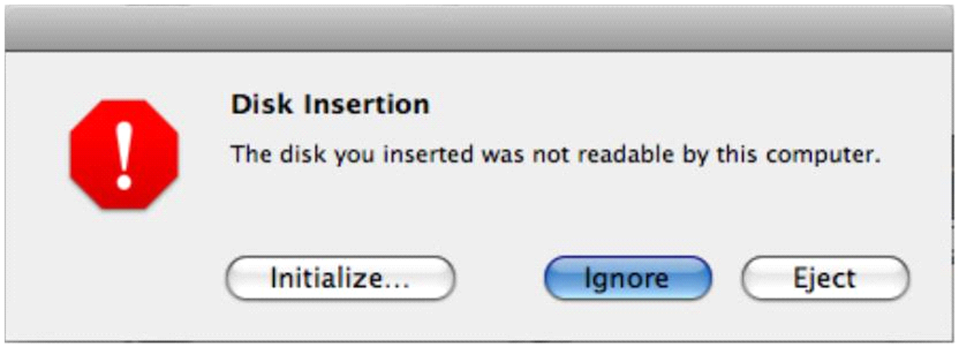

5. You will receive a Disk Insertion warning message from the operating system. Click Ignore.

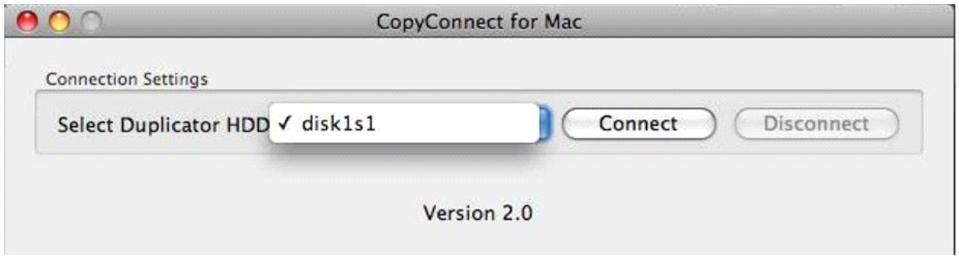

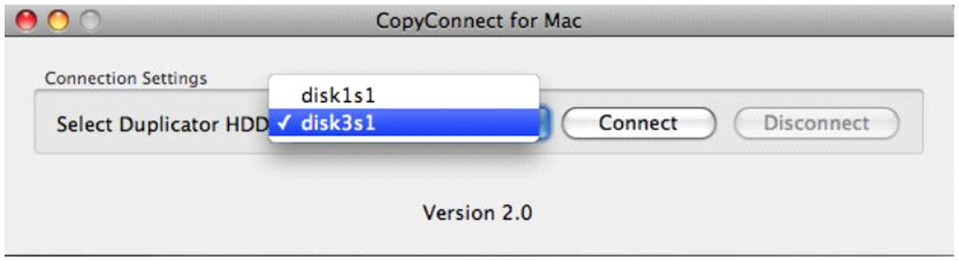

6. In the Copy Connect menu, click on and click on the drive that has been added to the list.

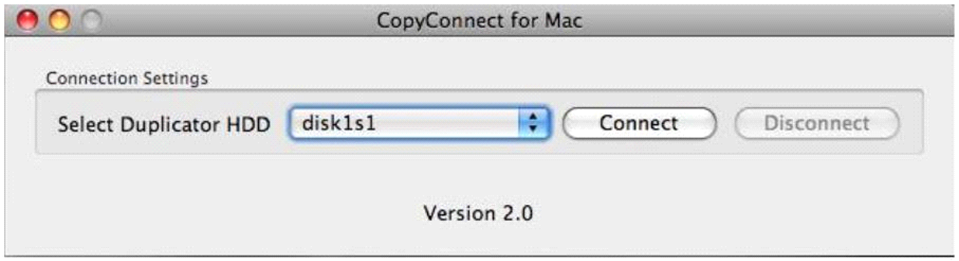

7. Click on the Connect button.

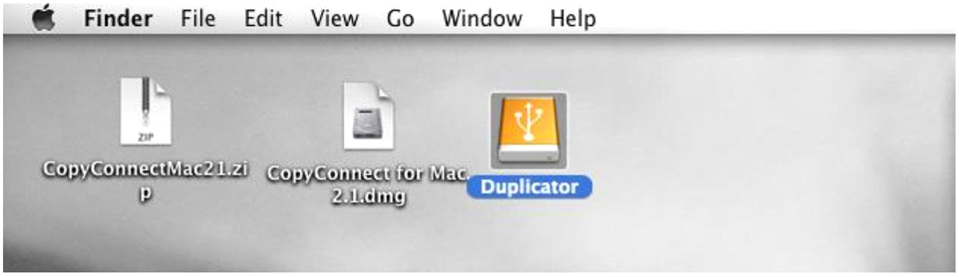

8. A new USB hard drive named “Duplicator” appears on the desktop.

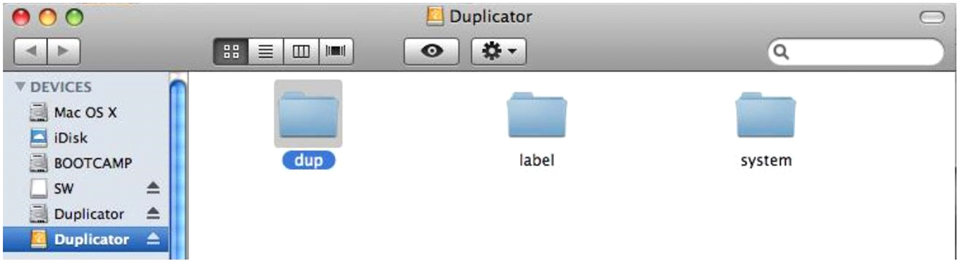

9. When you open the “Duplicator” drive, you will see three folders: dup, label and system. Any ISO image files that you want to save to the duplicator’s hard drive must be saved in the dup folder.

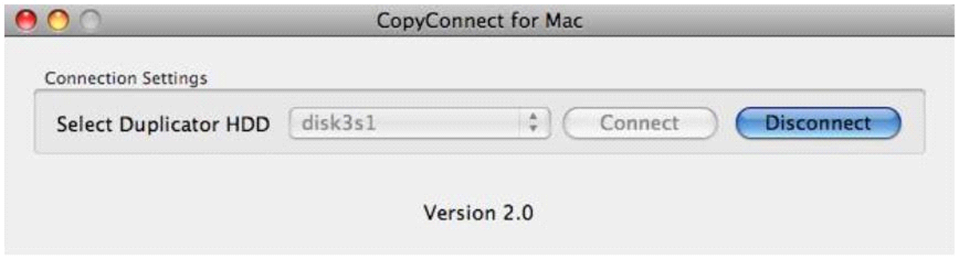

10. When you are done copying your ISO files to the duplicators internal hard drive, drag the Duplicator drive icon to the trash can to eject it and then click on the Disconnect button.

You can now disconnect the USB cable.

Turn the External Connection setting on the duplicator to. This will require you to restart the Duplicator. When the Duplicator boots up, you will be able to access the ISO image files saved on the Duplicator’s internal hard drive.
