Optical Duplicator Media Manager

The Kanguru Media Manager needs to be installed in order for your computer to recognize the Kanguru Duplicator’s hard drive through the USB connection (or Ethernet connection on Network Models).

The Kanguru Duplicator’s hard drive is formatted using a proprietary file format that is not recognized by your computer. Once you have installed the Kanguru Media Manager on your PC, your PC will be able to recognize the file format and you will be able to access the Duplicator’s hard drive, allowing you to copy or save files directly from your computer to your Duplicator through the USB connection.

The latest version of Windows Media Manager can be found by clicking here.

Minimum Hardware Requirements:

√ Pentium 3 Class CPU or better

√ CD-ROM drive

√ 512MB of RAM

√ 10MB of free disc space on your hard drive.

Software Installation

1. Insert the Kanguru Media Manager Installation Disc into the CD drive of your computer.

2. Under My Computer or Windows Explorer, click on the CD drive.

3. From the CD Drive, double-click Setup.exe to run the setup program.

4. The Installation Program appears. Select I Accept after reviewing the license information and then  click on the Next button.

5. You will be prompted for a Product Key. The Product Key can be found on the back of you Kanguru  Duplicator. Enter your Name, Company Name (optional) and Product Key into the appropriate fields  and then click on the Next button.

Note: The product key is case sensitive. Make sure you enter the product key exactly as it appears on the back of your Duplicator.

6. Select a destination folder where the necessary files will be installed into and then click on the Next button.

7. Select the programs you want to install from the next screen and then click on the Next button.

Note: ImgBurn is a 3rd party application that is used for creating ISO image files to/from DVDs or CDs. If you have already installed ImgBurn or have a similar application that you use for creating image files, you do not need to install ImgBurn.

8. Complete the install wizard to finish installing the Kanguru Media Manager.

How to Use Media Manager

Once you have installed Kanguru Media Manager you will be required to restart your computer before it can recognize the Duplicator’s hard drive.

After you have successfully installed the Kanguru Media Manager onto your computer, you can now copy or save DVD image files to the Kanguru Duplicator’s hard drive through your computer.

Warning! Do not try to access the Duplicator’s hard drive through your computer before you have installed Kanguru Media Manager. If you try to access the Duplicator’s hard drive through your computer before installing the Kanguru Media Manager, your computer will not be able to recognize the file format and you will be prompted to format the hard drive. Do not format the hard drive; doing so will erase any data stored on the hard drive.

1. Connect the Kanguru Duplicator to your computer via USB using the provided USB cable.

2. From the Duplicator’s main menu, turn the USB Connection setting to On. This will require you to restart the Duplicator.

Note: While the USB Connection setting is On, you will not be able to access the Duplicator’s hard drive from the Duplicator. You can only access the Duplicator’s hard drive from the Duplicator when the USB Connection setting is Off.

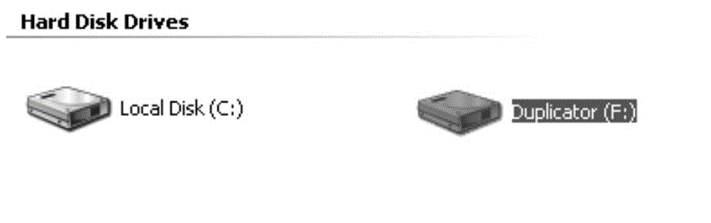

3. When the Duplicator boots up, a new Hard Disk Drive named Duplicator will appear under My  Computer.

4. Copy/Save your DVD image (.iso) files to the Duplicator’s hard drive

√ DVD image files (.iso) - Copy/Save your .iso image files in the folder named Dup on the Duplicator’s hard drive. All image files must be stored in this folder for proper functionality.

5. When you have finished copying your .iso image file(s) to the Kanguru Duplicator, turn the USB  Connection setting to Off. This will  require you to restart the Duplicator.

6. Disconnect the USB cable.

When the Duplicator boots up, you will be able to access the Duplicator’s hard drive from the Duplicator again.

Note: The Kanguru Duplicator comes with ImgBurn software which can be used to create .iso image files from DVDs. ImgBurn is a 3rd party software and is not supported by Kanguru Solutions. For ImgBurn information or support, please check the ImgBurn website at : www.imgburn.com
