Optical Duplicator Erase

The Erase function allows you to erase RW media. Once erased, the RW disc can be used again as blank media.

You have two options for erasing rewriteable discs:

√ Full Erase - Erases all data on the disc, making data impossible to be recovered. Best option if erasing sensitive or confidential data. Full Erase erases all data completely, but takes longer to complete than a Quick Erase.

√ Quick Erase - Erases the index of the rewritable disc only, not the data section. Quick Erase takes less time to complete than Full Erase.

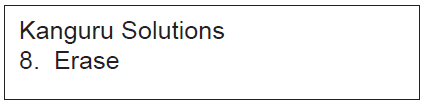

	1. From the Main Menu, press the UP or DOWN button  to navigate to Erase. Press the ENT button to enter the Erase menu.
	2. Press the UP or DOWN button to select Full Erase or Quick Erase and then press the ENT button to confirm your selection.
	3. You will see the Counter screen.
	4. Once you have set the Counter, any trays that do not contain discs in them will automatically be ejected. You will see the Preparation screen.
	5. Insert the rewritable disc into the drive trays. Give the Duplicator 5 - 10 seconds for the system to detect the discs. Once they have been recognized, you will see the confirmation screen. When the number of discs detected matches the number of discs you inserted, press the ENT button to confirm.

6. After 2 or 3 seconds of processing time, one of the following Erase screens will appear depending on

whether you selected Quick Erase or Full Erase.

7. Once the Erase process has been completed, you will see the following screen.

√ PASS 7 - number of discs successfully copied. √ FAIL 0 - number of discs that failed to copy. √ ( 7 ) - number of copies made for this job so far.

The successfully erased discs will be ejected. Remove the successfully erased discs, refill the trays with rewritable media and press the ENT button to continue erasing another round of discs. Any discs that fail to erase will not be ejected automatically. You will need to manually eject them. Empty drives will also not be ejected automatically.

8. Terminate the current job.

                a) If you have finished making copies, press the ESC button to terminate the current

                    duplication project and exit to the Main Menu.

                b) If you specified a Counter, once you see the following screen indicating that the

                    specified Counter value has been reached, you can then press the ENT button to

                    exit to the Main Menu.
