Hard Drive Tower Duplicator - Duplication Process

MPORTANT! Insert all Source and Target hard drives before you execute a Copy operation. Additionally, DO NOT remove any drives while duplication is in process. If you want to stop the duplication process, press the ESC button to cancel at any time.

To execute the duplication of a Source hard drive:

1. Power on the duplicator.

2. From the Main Copy Menu press the Up or Down buttons until you see the desired copy mode.  The Kanguru Hard Drive Tower Duplicator offers Disk, Brief, and Resize copy modes.

3. Once you have selected the desired copy mode, press the ENT button to execute the copy function. Before the duplication process begins the system will check for any connected drives.

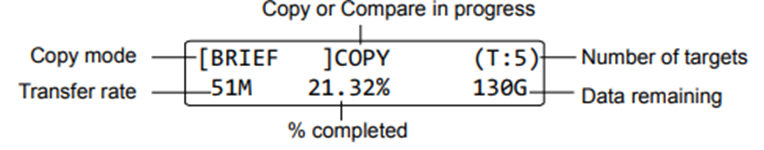

4. Once all drives have been detected and initialized, the duplication process begins. During the duplication process the LCD screen will display the following information:

WARNING! Do not remove any drives while duplication is in process. If you want to stop the duplication process, press the ESC button to cancel at any time.

5. Once the copy process has completed the Kanguru Clone will list each Target drive location with either a “V” or “X”.

• V - Appears next to any drive verified to have completed duplication successfully.
• X - Appears if a drive failed duplication for any reason. When a drive fails duplication, an error code can be generated. For a list of common error codes and their meanings, please see Error Code List.

6. Press any button to return to the Main menu. The duplicator will automatically keep a running count of the number of passed and failed duplications until you change copy modes.

For more information on the Kanguru Hard Drive Tower Duplicator, please refer to the User Manual located at HERE.
