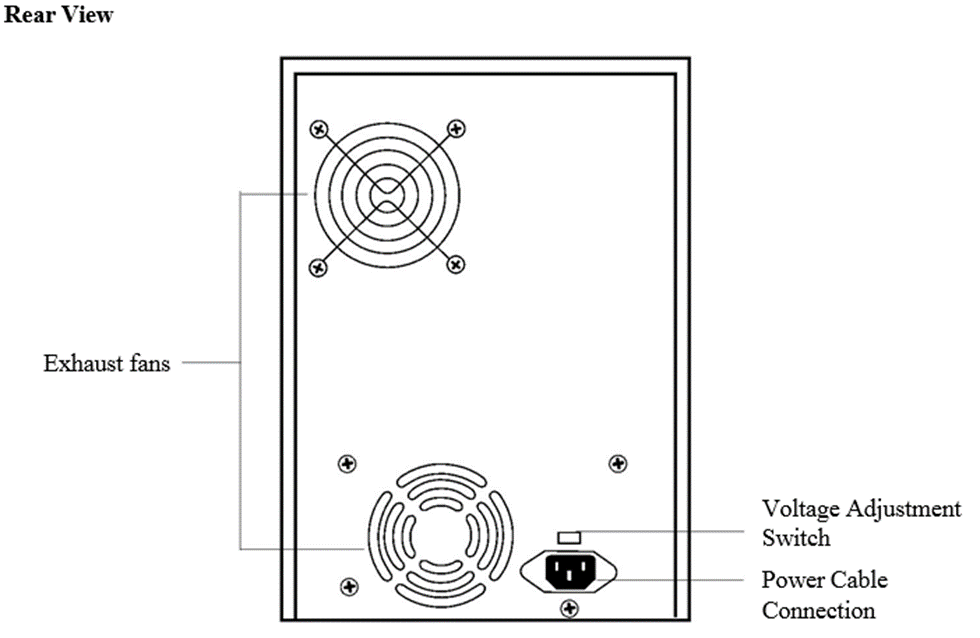

Hard Drive Tower Duplicator - Parts and Functions

Inserting hard Drives

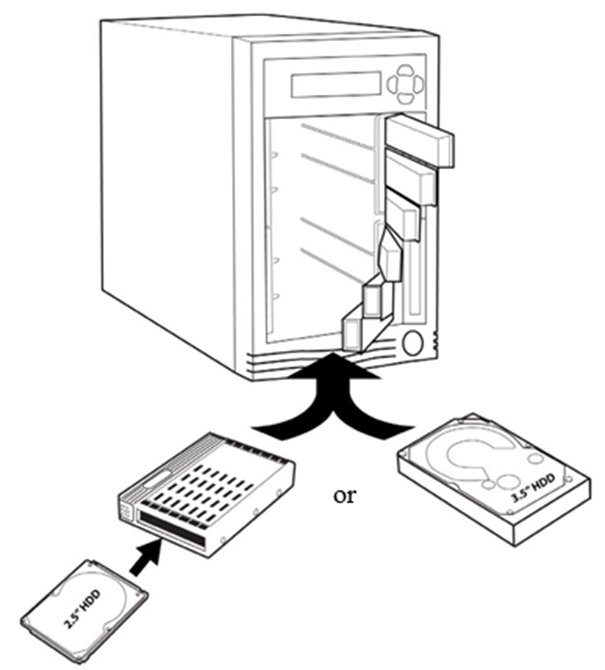

The Kanguru Clone Tower Duplicator features a simple, tool-less rack design that makes connecting your SATA hard drives quick and easy. Each bay can be opened by lifting the latch switch on the door.

• 3.5” SATA drives can be inserted directly into any of the Kanguru Clone bays with the SATA connectors facing down and into the duplicator.
• 2.5” SATA drives must be inserted into the 2.5” to 3.5” adapter cartridge first. Afterwards the cartridge can be inserted into the any of the bays the same as a 3.5” drive. Note: The 2.5” SATA adapter cartridges will only fit drives with a maximum thickness of 9.5mm.

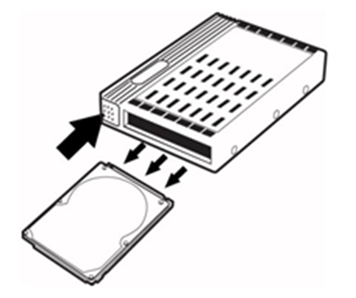

To eject the 2.5” drive from the adapter cartridge, press down firmly on the eject button and the 2.5” drive will slide out of the adapter cartridge.

For more information on the Kanguru Hard Drive Tower Duplicator, please refer to the User Manual located at HERE.
