Mobile Clone - Advanced Setup Menu - Device Info

Device Info allows you to view information about any hard drives currently connected to the duplicator.

To view device information:

1. From the Advanced Setup Menu, tap the SET button to navigate to the Device Info function.

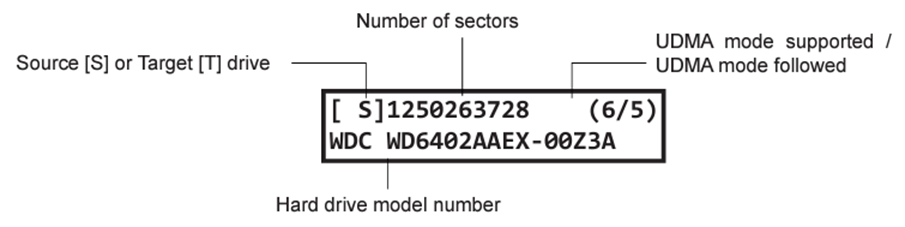

2. Tap the RUN button to begin viewing the device information. Once the connected hard drives have been initialized you will see the following:

3. Tap the SET button to view information about the next device.

4. After you have viewed all devices, you will automatically return to the Advanced Setup Menu. You can also hold the SET button to exit to the Advanced Setup Menu at any time.
