Mobile Clone - Duplicating from a Source HDD

Using a Source HDD as the Source is the simplest and most convenient way to perform the duplication process.

IMPORTANT! Connect your Source HDD on the side labeled SOURCE. Connect the Target hard drives on the side labeled TARGET. Connect all drives before you execute an operation.

To execute the duplication of a Source HDD:

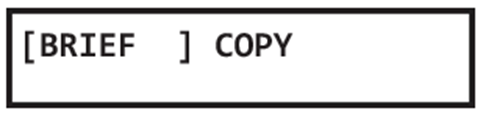

1. From the Main Menu, tap the SET button to navigate to the desired copy mode. The screen will display the following:

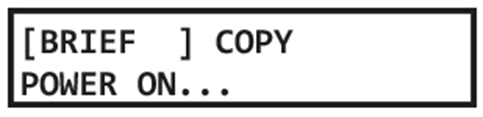

2. Once you have selected the copy mode, tap the RUN button to execute it. The duplication process begins as the system initializes the connected disks.

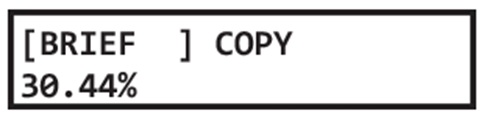

3. Once all connected disks have been detected and initialized, the duplication process begins. During duplication the screen will display the following information:

WARNING! Do not remove any drives while duplication is in progress. Wait for duplication to finish before removing a drive. If you wish to interrupt the current process, tap the RUN or SET button at any time.

4. Once the copy process is completed the screen will either provide you with a Success message or, if for any reason a drive was not duplicated successfully, an error message. Tap the SET button to view the total duplication time.
